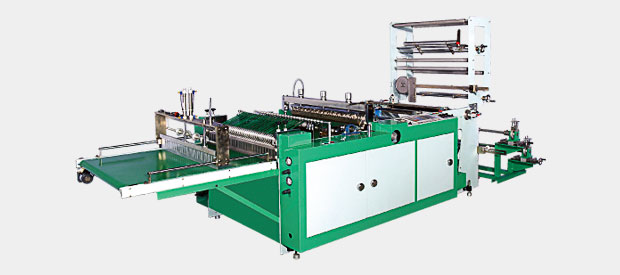

High-Efficiency Fully Automatic Side-Weld Bag-Making Machine with Servo-Drive System



MODEL: SSD-750A, SSD-900A, SSD-1100A





Features



  1. Speeds up to 250 bag/min. depending on film thickness and draw length.
  2. Extensive use of linear bearings (Thompson) for the hot knife.
  3. All cams and major components are located outside the frames.
  4. Timing belts in lieu of chains provide smoother power and quieter operation.
  5. All-AC drive to power hot knife section, all-AC drive technology-no brushes to out in motors.
  6. Heavy-duty servo drive on draw roller.
  7. New design of paddle rope belt section for easy set-up.
  8. Operator-friendly control panel.
  9. Tension control.
  10. Common base-frame construction allows for installation and bag production within hours.
  11. Air-loaded hot knife.



Model Bag size (mm) Max Production Speed Bags/min Max. Thickness of film (mm) Heater Kw Power required
Width (mm) Length (mm)
SSD-750A 75-800 750 250 bag / min 0.01~0.15 mm 2.5 8
SSD-900A 75-900 900 250 bag / min 0.01~0.15 mm 2.5 8
SSD-1100A 75-900 1050 230 bag / min 0.01~0.15 mm 2.8 10

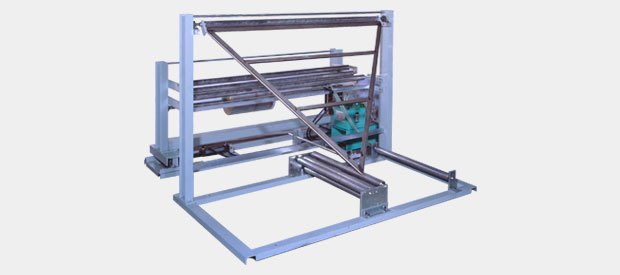

MODEL: SU-1000,1500
