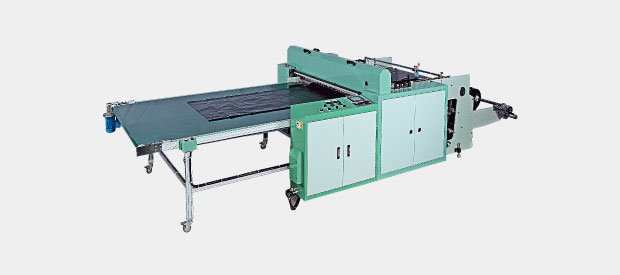

High-Efficiency Fully Automatic Bottom Sealing Bag Making Machine Design For Heavy Duty Bag Main Motor and Flying Knife With Servo-Drive Systems



MODEL: SPO-700A (F), SPO-800A (F), SPO-1000A (F), SPO-1200A (F), SPO-1500A (F)





Features



  1. The machine design for heavy duty bags.
  2. The machine using the design by flying knife cutting off, the knife is easy to be replaced.
  3. Cutting off is made by a flying knife system with servo drive control system.
  4. The bottom sealing design is heating lines by heating wire sealing system with standby heat feature, to achieve a strong sealing line.
  5. With auto stop motion device for the film empty.



Model Bag size (mm) Max Production Speed Bags/min Max. Thickness of film (mm) Heater Kw Power required
Width (mm) Length (mm)
SPO-800A(F) Max.700 200-2000

120 bags/min

 0.04~0.6 mm 1 KW 8 KW
SPO-1000A(F) Max.900 200-2000

100 bags/min

0.04~0.6 mm 2 KW 9 KW
SPO-1200A(F) Max.1100 200-3000

90 bags/min

 0.04~0.6 mm 2 KW 14 KW
SPO-1500A(F) Max.1400 200-3000 80 bags/min 0.04~0.6 mm 2 KW 15 KW
