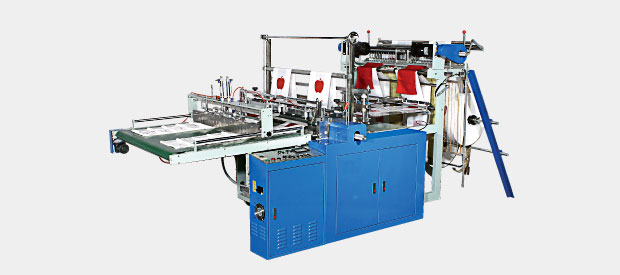

High-Efficiency Fully Automatic Sealing & Cutting Machine



MODEL: SP-700A, SP-800A, SP-1000A, SP-1200, SP-1500





Features



  1. For bottom-sealing bags.
  2. Timing belts in lieu of chains provide smooth power and quieter operation.
  3. Clutch and brake made in Japan.
  4. With auto stop motion device for the temp-drop 4-6 degree.
  5. With auto stop motion device for the bag become super imposed.
  6. With auto stop motion device for the film empty



Model Bag size (mm) Max Production Speed Bags/min Max. Thickness of film (mm) Heater Power required
Width (mm) Length (mm)
SP-700A

680 mm × 1

300 mm × 2

 1200mm

40~140 bags/min

 0.008~0.15 2000W 3 KW
SP-800A

780 mm × 1

350 mm × 2

 1200mm

40~130 bags/min

 0.008~0.15 2000W 3.5 KW
SP-1000A

1000 mm × 1

450 mm × 2

 2000mm

40~120 bags/min

 0.008~0.15 2000W 4 KW
SP-1200

1200 mm × 1

550 mm × 2

 2500mm 40~110 bags/min 0.01~0.25 2200W 4 KW
SP-1500

1500 mm × 3

700 mm × 2

 2500mm 20~90 bags/min 0.01~0.25 2500W 6 KW
