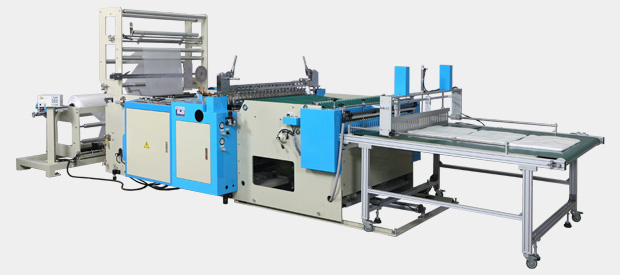

High-Efficiency Fully Automatic Universal and Multipurpose Bag Making Machine For Side-Sealing, Bottom Sealing, Double Sealing Bag-Making Machine With Servo-Drive System Applicable Material: PP, OPP, HDPE, LDPE, LLDPE
MODEL: SBD-750A, SBD-900A, SBD-1100A, SBD-1300A
Conscious of the first aims of the bag-maker producer
1. more flexibility
2. good quality
3. better profits
Universal automatic and multipurpose bag making machines

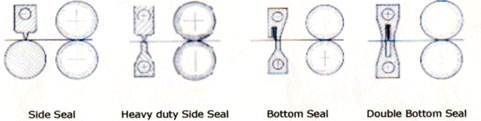

Bag makers with different sizes as 800, 900, 1100, 1300 mm with possibility of using different welding bars （bottom seal – double seal, mixed weld – side seal）
Are very versatile machines with the possibility of changing production very quickly and easily, particularly indicated for small orders. All these models are prepared for different accessories in order to produce different types of bags.
Cutting and welding film system
1. Modular welding head first cuts and only successively welds the film.
2. Cut is made by a toothed cold cutting blade.
Table1-Side Seal
| Seal Type/Model | Side Seal | |||||
|---|---|---|---|---|---|---|
| Bag Size (mm) | Thickness of film, Material | Speed Max | ||||
| Width (mm) | Length (mm) | PP, OPP | HDPE | LDPE/LLDPE | Cycle /min | |
| SBD-750A | 75~800 | 100~750 | 0.01~ 0.15 | 0.01~0.15 | 0.01~0.4 | 50~220 |
| SBD-900A | 75~800 | 100~900 | 0.01~0.15 | 0.01~0.15 | 0.01~0.4 | 50~220 |
| SBD-1100A | 75~1000 | 100~1050 | 0.01~0.15 | 0.01~0.15 | 0.01~0.4 | 45~200 |
| SBD-1300A | 75~1000 | 100~1250 | 0.01~0.15 | 0.01~0.15 | 0.01~0.4 | 45~200 |
Table2-Bottom Seal
| Seal Type/Model | Bottom Seal | |||||
|---|---|---|---|---|---|---|
| Bag Size (mm) | Thickness of film, Material | Speed Max | ||||
| Width (mm) | Length (mm) | PP, OPP | HDPE | LDPE/LLDPE | Cycle /min | |
| SBD-750A | 100~800 | 100~750 | 0.01~0.15 | 0.01~0.2 | 0.01~0.5 | 50~220 |
| SBD-900A | 100~800 | 100~900 | 0.01~0.15 | 0.01~0.2 | 0.01~0.5 | 50~220 |
| SBD-1100A | 100~1000 | 100~1050 | 0.01~0.15 | 0.01~0.2 | 0.01~0.5 | 45~200 |
| SBD-1300A | 100~1000 | 100~1250 | 0.01~0.15 | 0.01~0.2 | 0.01~0.5 | 45~200 |
Table3-Double Seal
| Seal Type/Model | Double Seal | |||||
|---|---|---|---|---|---|---|
| Bag Size (mm) | Thickness of film, Material | Speed Max | ||||
| Width (mm) | Length (mm) | PP, OPP | HDPE | LDPE/LLDPE | Cycle/min | |
| SBD-750A | 100~800 | 100~750 | 0.01~0.15 | 0.01~0.5 | 0.01~0.6 | 50~220 |
| SBD-900A | 100~800 | 100~900 | 0.01~0.15 | 0.01~0.5 | 0.01~0.6 | 50~220 |
| SBD-1100A | 100~1000 | 100~1050 | 0.01~0.15 | 0.01~0.5 | 0.01~0.6 | 45~200 |
| SBD-1300A | 100~1000 | 100~1250 | 0.01~0.15 | 0.01~0.5 | 0.01~0.6 | 45~200 |
