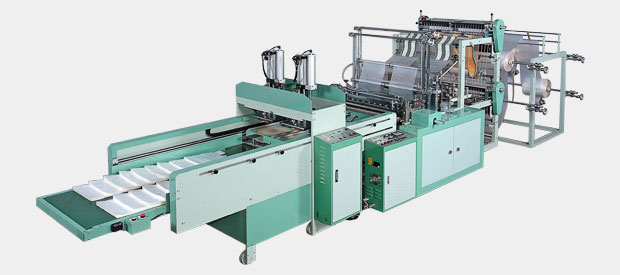

High-Efficiency Fully Automatic “T-shirt Bag” Making Machine



MODEL: SP-700 (4L) + AP, SP-800 (4L) + AP, SP-1000 (4L) + AP

※ Option equipment: Servo-Drive System







Features

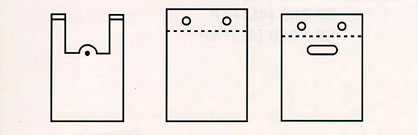

  1. This machine suit to make calendar type bags & T-shirt bags.
  2. Stop motion device for the film empty.
  3. Automatic punching machine user air pressure to push oil hydraulics.



Model Bag size (mm) Max Production Speed Bags/min Max. Thickness of film (mm) Heater Kw Power required
Width (mm) Length (mm)
SP-700(4L)+AP 300 700

30~130 bags/min

(each line)

0.008~0.15 3.5 6KW
SP-800(4L)+AP 350 700

30~120 bags/min

(each line)

0.008~0.15 4.5 7KW
SP-1000(4L)+AP 400 700

30~90 bags/min

(each line)

0.008~0.15 5 7.5KW
